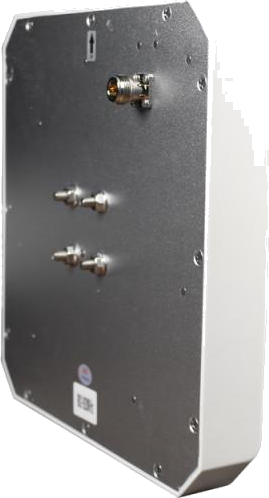

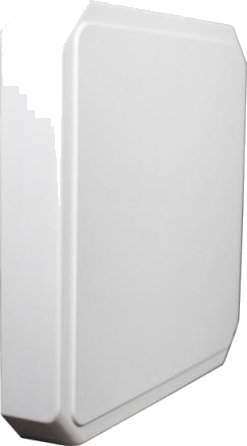

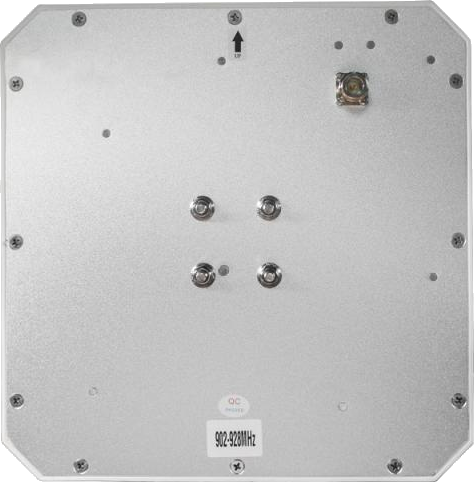

5.5 DBI ANTENNA

This 5.5 dBi antenna is pleasing in appearance, environmental adaptability, and easy to install.

Item Code: HT-ATN001
Working Frequency: 860-960MHz

Covers exactly the area you want to read — and nothing past it.

Working Frequency: 860–960 MHz

Used for terminals, parking lots, shopping malls, toll station, warehouse management, inventory counting, meeting sign-in, etc.

We have a return/exchange policy of 1 year with proof of damage.

Works well with

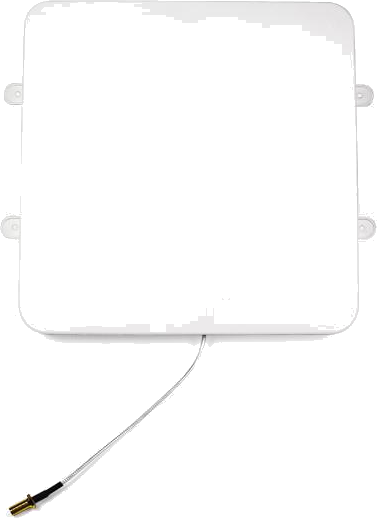

8DBI ANTENNA

This 8dBi antenna is designed for unmanned retail and smart container applications. Small in size, thin thickness, high gain, wide wave speed, low standing wave, and low axial ratio.

Item Code: HT-ATN002
Working Frequency: 902MHz～928MHz or 865-868Mhz

Real range, hidden inside a cabinet the size of a shelf.

Working Frequency: 902 MHz–928 MHz or 865–868 MHz

Warehousing, Logistics, Assets, Retail Stores, Intelligent Containers, Distribution Centre, Airports, Hospitals, Transit Terminals, and Conveyor Belts.

We have a return/exchange policy of 1 year with proof of damage.

Works well with

UHF RFID 4-Port Reader

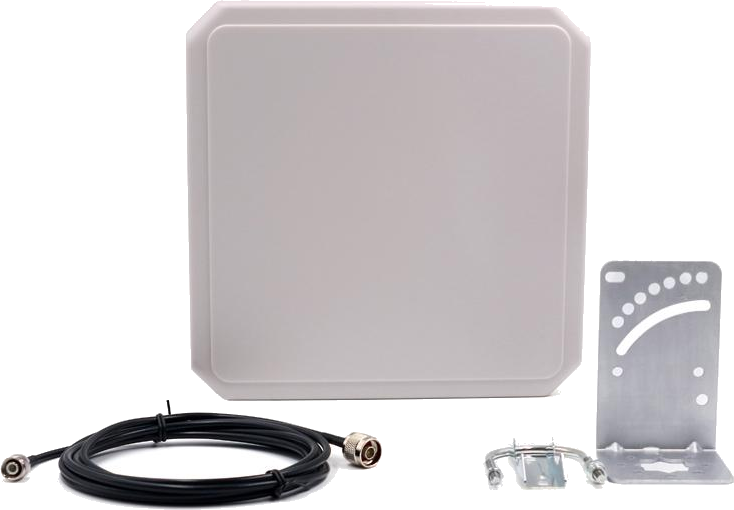

9DBI ANTENNA

This 9dBi Antenna is a cross-line polarized directional antenna. When using it, care should be taken to adjust the tilt angle of the antenna to obtain optimal read performance. It can be used outdoors, but not suitable for use in acid/alkaline environments.

Item Code: HT-ATN003
Working Frequency: 902~928MHz or 865~868MHz

Aim it down one aisle, and it reads deep — while ignoring the aisle next to it.

Working Frequency: 902–928 MHz or 865–868 MHz

Warehouses, Distribution Centre, Airports, Hospitals, Transit Terminals, and Conveyor Belts.

We have a return/exchange policy of 1 year with proof of damage.

Works well with

UHF RFID Industrial Grade RFID Reader

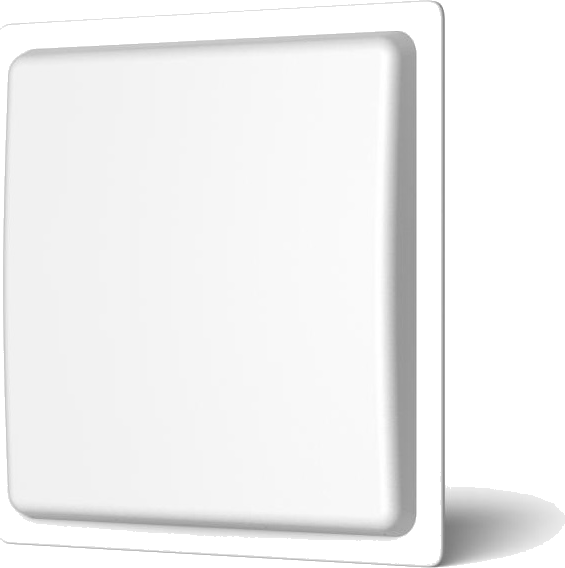

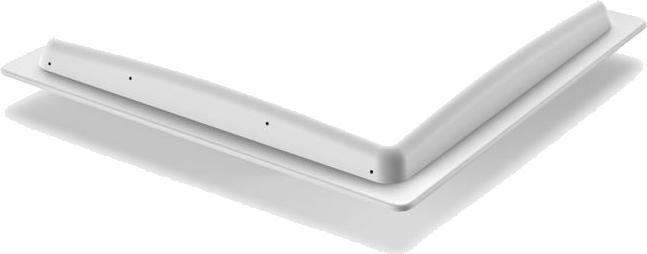

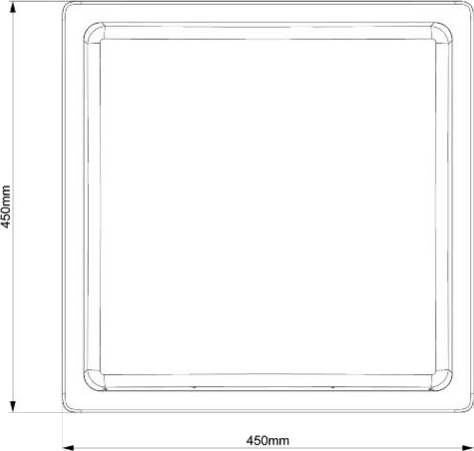

12DBI ANTENNA

This 12dBi Antenna is a long range antenna. It is pleasing in appearance, environmental adaptability, and easy to install.

Item Code: HT-ATN004
Working Frequency: 902~928 MHz or 865~868MHz

Long enough range to cover a gate most antennas can't reach across.

Working Frequency: 902–928 MHz or 865–868 MHz

Terminals, Parking Lots, Shopping Malls, Toll Station, Container Management, etc.

We have a return/exchange policy of 1 year with proof of damage.

Works well with

UHF RFID 4-Port Reader RFID Card Tag

12 dBi long strip RFID antenna – main view

12DBI LONG STRIP ANTENNA

This 12dBi Long Strip Antenna is a high gain RFID antenna mainly for smart library, shelf, warehouses, door control system, logistic & supply chain asset management etc.

Item Code: HT-ATN005
Working Frequency: 865-868MHz or 902-928MHz

Reads floor to ceiling — a tag at ankle height and one overhead, in the same pass.

12 dBi long strip antenna specification sheet

Working Frequency: 865–868 MHz or 902–928 MHz

Smart Library, Shelves, Warehouse, Door Control System, Logistic & Supply Chain Asset Management, etc.

We have a return/exchange policy of 1 year with proof of damage.

Works well with

UHF RFID 4-Port Reader

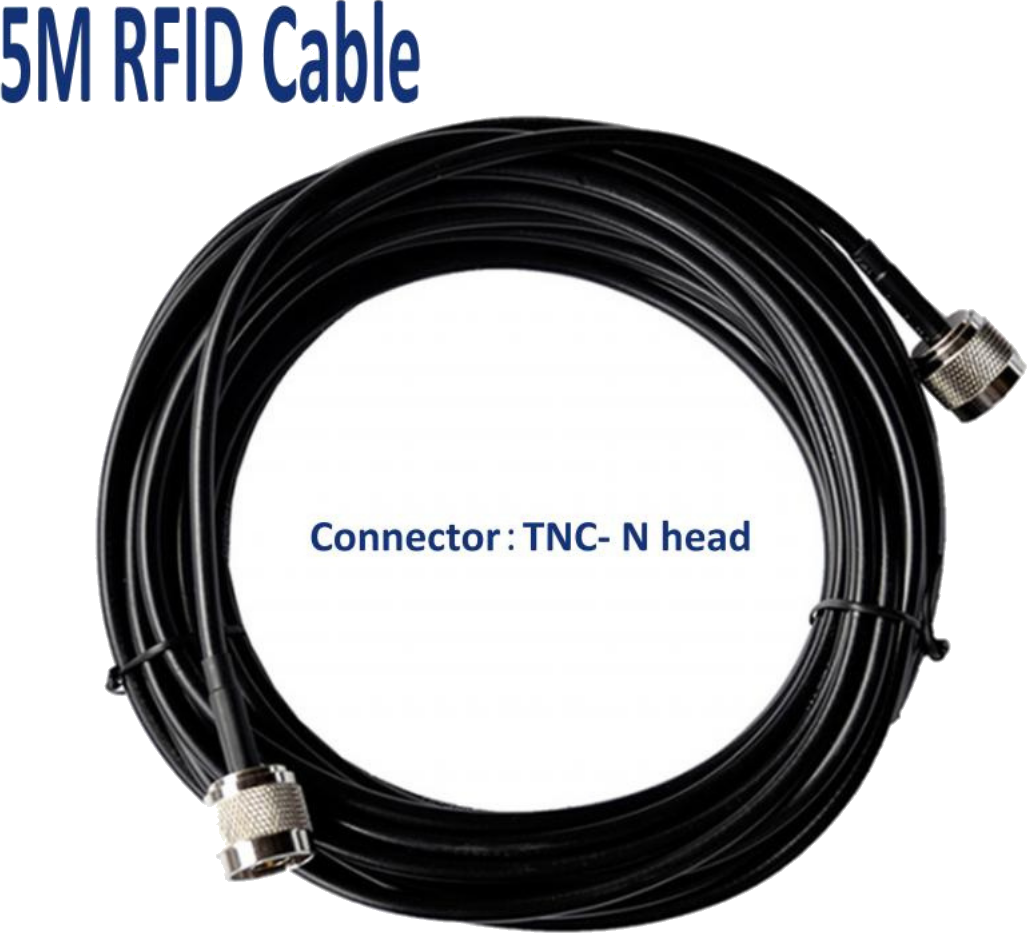

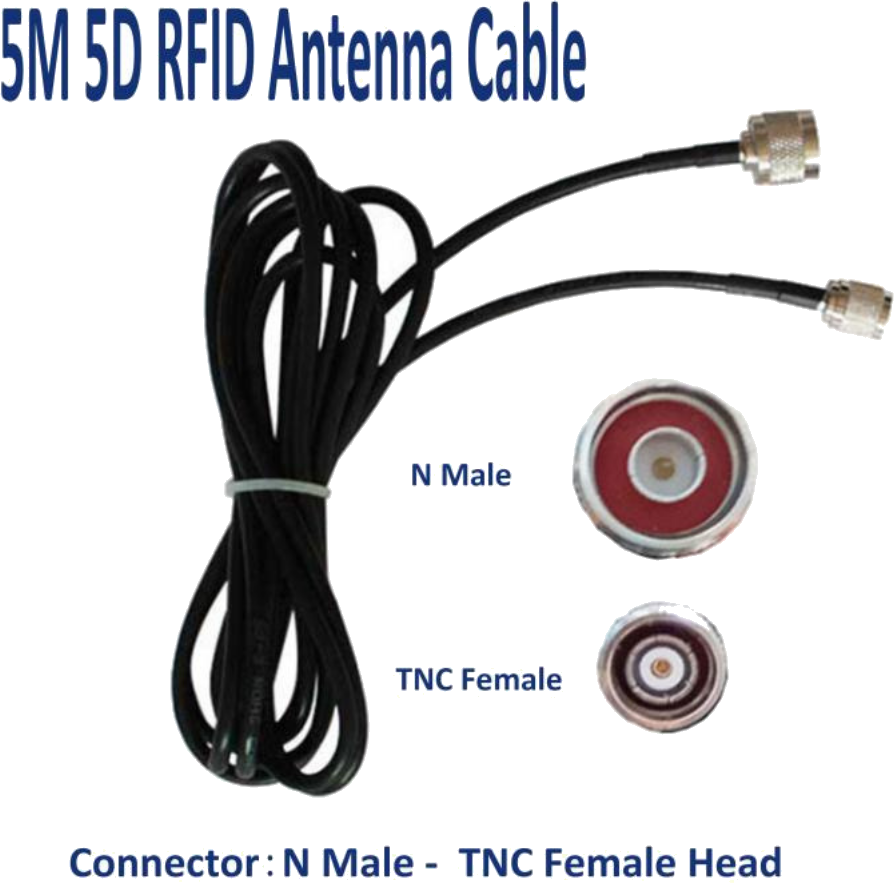

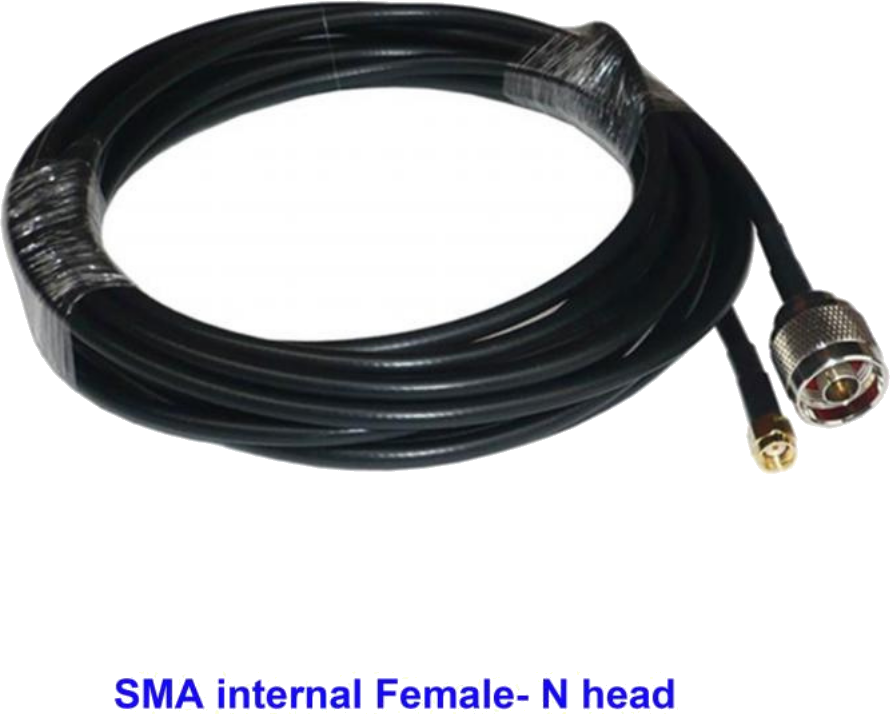

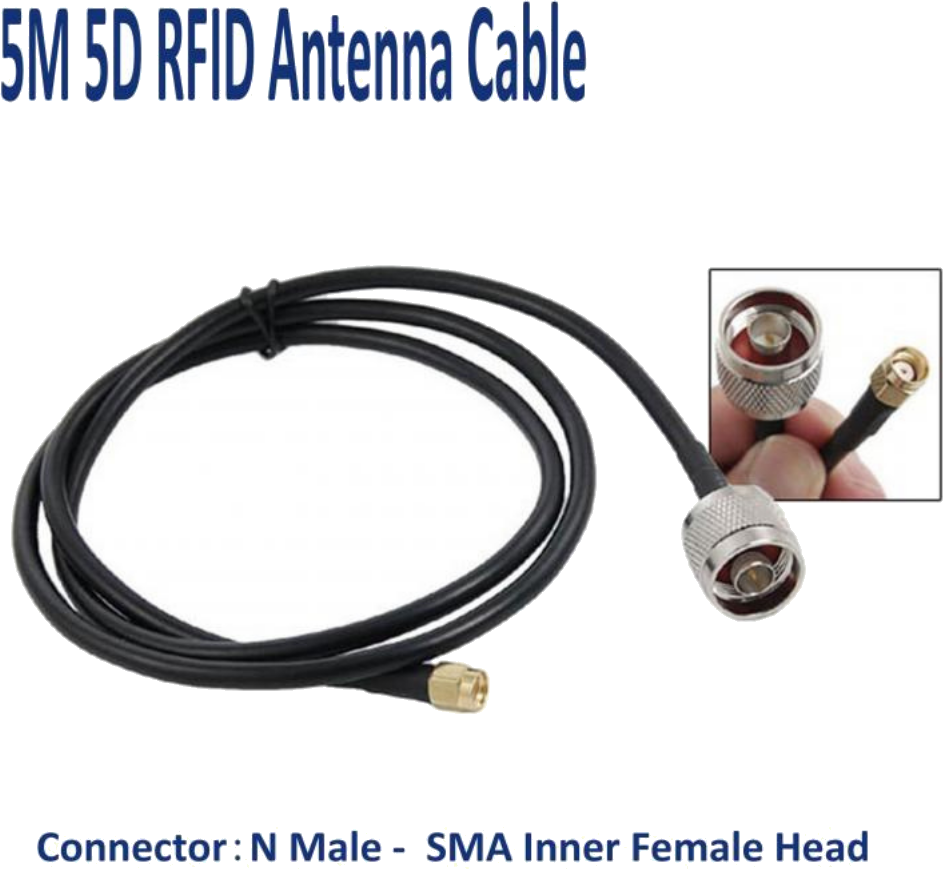

ANTENNA CABLES

High performance, flexible, and low loss RFID antenna cables. These RFID cables are suited for indoor and outdoor installations.

Item Codes: - HT-ATNC01
- HT-ATNC02
- HT-ATNC03
- HT-ATNC04

The part people get wrong and then blame the reader — a mismatched cable eats signal before it ever reaches the antenna.

Item Codes: HT-ATNC01 / HT-ATNC02 / HT-ATNC03 / HT-ATNC04
Head: TNC Male / N-type / SMA Internal Male / SMA External Female
Variant: 3m, 5m, 10m, 15m, 20m

We have a return/exchange policy of 1 year with proof of damage.

FAQs

Get answers to your questions about RFID antennas and their cables.

Contact

What are RFID antennas?

RFID antennas are devices that transmit and receive radio waves to communicate with RFID tags. They play a crucial role in the performance of RFID systems by ensuring effective signal strength and coverage. Proper selection of antennas can significantly enhance the efficiency of RFID applications.

How do they work?

RFID antennas work by emitting radio frequency signals that activate RFID tags. Once activated, the tags send back data to the reader through the antenna. This process allows for real-time tracking and data collection.

What cables are needed?

The type of cable needed depends on the antenna and the distance from the reader. Generally, low-loss coaxial cables are recommended to minimize signal degradation. It's important to choose cables that match the specifications of your RFID system.

Can antennas be customized?

Yes, RFID antennas can be customized to meet specific application requirements. Customization may include adjustments in size, shape, and frequency range. This ensures optimal performance in various environments.

What is the range?

The range of RFID antennas varies based on the type and power of the system. Typically, passive RFID systems have a range of a few inches to several feet, while active systems can reach distances of up to 300 feet. Environmental factors and antenna placement also affect the effective range.

Custom RFID Antennas Tailored for You

Inquire now for a personalized antenna solution.

Inquire Request

FAQs

Discover the most common questions about RFID antennas and their practical applications.

What are RFID antennas?

RFID antennas are devices that transmit and receive radio frequency signals to communicate with RFID tags. They play a crucial role in the efficiency of RFID systems by determining the read range and accuracy. Different types of antennas are designed for specific applications and environments.

How do they work?

RFID antennas emit radio waves that activate RFID tags within their range. Once activated, the tags send data back to the antenna, which is then processed by an RFID reader. This interaction enables real-time tracking and data collection.

What types exist?

There are various types of RFID antennas, including linear, circular, and patch antennas. Each type is suited for specific applications, such as fixed installations or mobile use. Choosing the right antenna depends on factors like read range and environmental conditions.

What is read range?

Read range refers to the maximum distance at which an RFID reader can successfully communicate with a tag. It varies based on the type of antenna, the frequency used, and environmental factors. Understanding read range is essential for effective RFID system design.

Can they be customized?

Yes, RFID antennas can be customized to meet specific requirements of different applications. Customization may include adjusting the frequency, size, and shape of the antenna. This flexibility allows for optimized performance in various environments.
